Concentrated silane/siloxane-based injection material against rising damp
A concentrated silane/siloxane-based injection material that provides a permanent solution to rising damp problems. Injected into the wall, it forms a chemical damp-proof barrier and prevents moisture rising from the ground from spreading through the structure.
Silane/siloxane-based, solvent-free emulsion
Milky white liquid
0.95 – 0.98 g/cm³
≈ 60% (concentrate) · ≈ 6% (solution)
1 part product : 9 parts water
Hydrophobisation
48 hours
14 mm · 10 cm apart
30° – 45° downward · 4/5 of the wall thickness (≈ 80%)
+5 °C / +30 °C
24 months
1 L · 5 L · 20 L
Values are typical figures obtained at +23 °C / 50% relative humidity.
The documents are PDFs and can be attached to specifications and tender files.

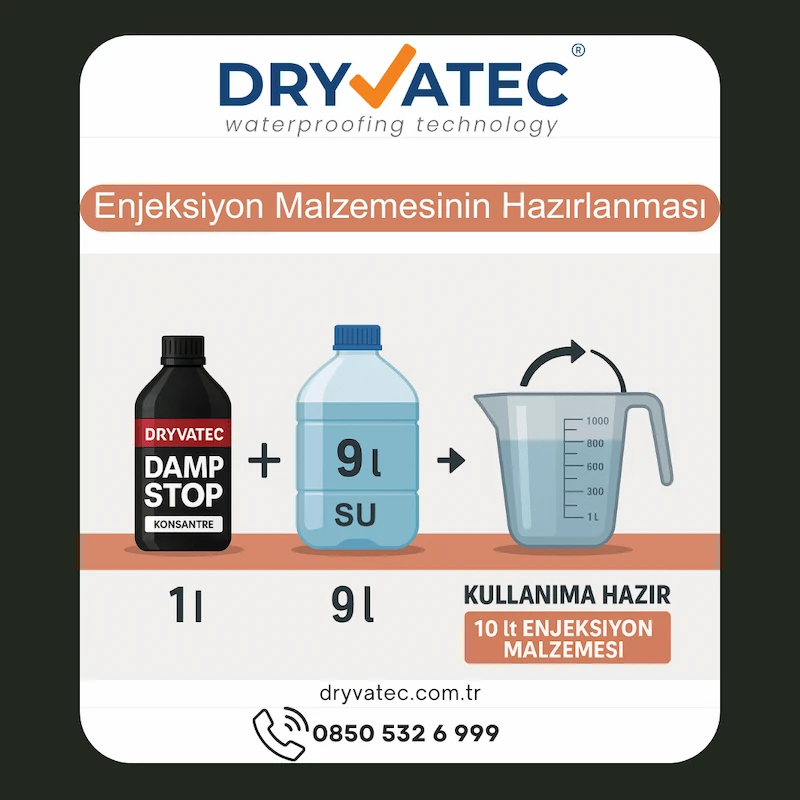

On hollow brick walls the old, damp plaster is first stripped and HydroFix damp-proofing plaster is applied; the injection follows once the plaster has dried (24–48 hours). Holes 14 mm in diameter are drilled at the base of the wall at 10 cm intervals, angled 30° – 45° downwards. The concentrate is mixed with water at a ratio of 1:9 (1 part product to 9 parts water) and injected into the wall using pressureless or low-pressure injection equipment. The product spreads inside the wall and forms a chemical damp-proof barrier.

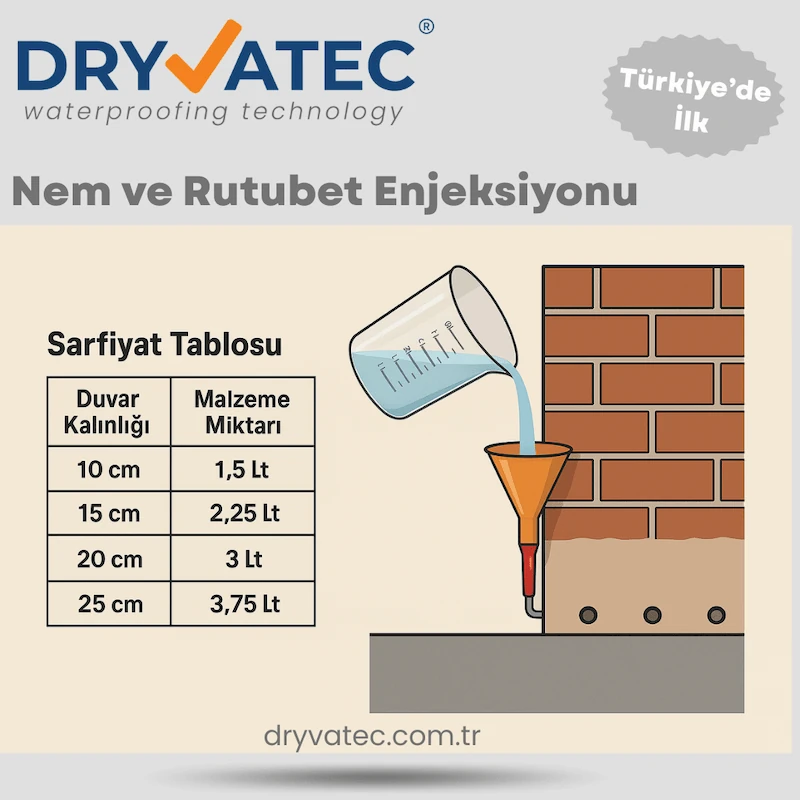

DampStop consumption is calculated not per square metre but by the length of the wall in metres and its thickness: ready-mixed solution, holes 10 cm apart — 1.5 L/m for a 10 cm wall, 2.25 L/m for a 15 cm wall. The Complete Kit (5 L concentrate = 50 L of solution) is enough for about 30–35 m of 10 cm wall or 20–25 m of 15 cm wall. For thicker walls, use the Consumption Calculator.
The continuous horizontal barrier forms within 48 hours after injection. Complete drying of the wall may take 4-12 weeks, depending on wall thickness and moisture level.
Contact us for detailed information, consumption figures and a price quote for DampStop D101 Concentrate.
